Configure Code Execution Sandbox

Select a Sandbox Provider

If your organization uses the Code component in Agent, administrators must configure the code execution sandbox in Sandbox settings.

The current page supports the following Provider options:

Provider	Description
`Local`	Execute code directly in the current host process.
`Self-Managed`	Use Daytona or Docker for localized deployment.
`SSH`	Execute code on a remote machine through SSH.
`AliyunCodeInterpreter`	Use Alibaba Cloud Function Compute Code Interpreter.
`E2B`	Use E2B Cloud Code Execution Sandboxes.

After selecting a Provider, the page displays the corresponding configuration area.

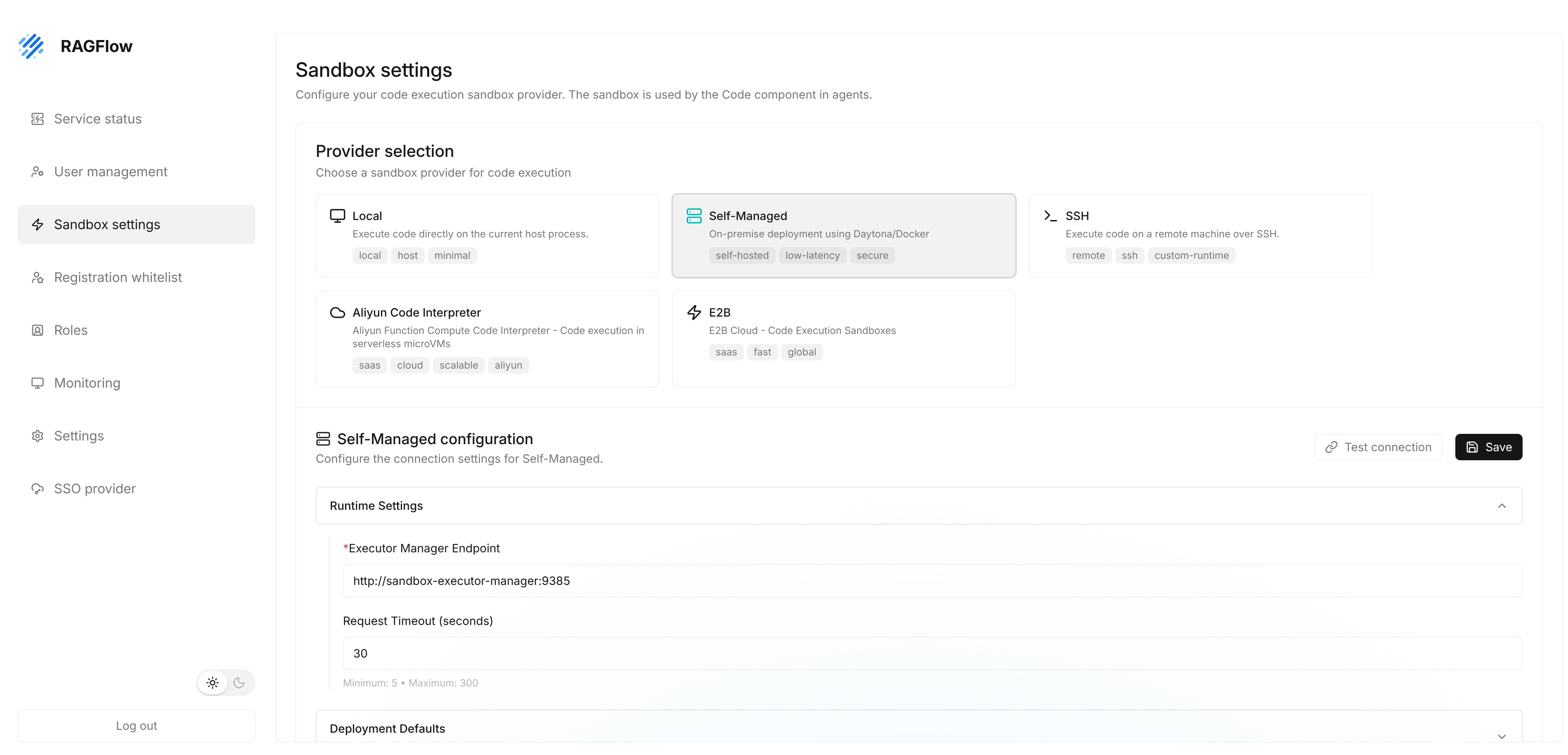

Select Sandbox Provider

Caution: Sandbox configuration affects not only connection availability, but also code isolation, network access, file access, and runtime resource limits. In production environments, prefer Self-Managed, cloud, or independent remote execution solutions with isolation capabilities. Direct use of Local is not recommended.

Provider	Applicable scenario	Main characteristics	Recommendation
`Local`	Local development and functional debugging	Runs code directly on the current host and is easy to configure.	Recommended only for controlled development and test environments.
`Self-Managed`	Enterprise intranet and private deployment	Uses a self-managed sandbox service to execute code. Data and runtime environments can be controlled independently.	Suitable for production environments and scenarios with high data security requirements.
`SSH`	Existing independent execution servers	Executes code on a remote host through SSH.	Suitable for reusing existing servers or custom runtime environments.
`AliyunCodeInterpreter`	Alibaba Cloud-related services	Uses a cloud service to provide the code execution environment, making elastic scaling easier.	Suitable for organizations already using the corresponding cloud service.
`E2B`	Fast access to a cloud sandbox	Executes code in an isolated environment provided by E2B.	Suitable for scenarios that need quick use without deployment.

Test and Save Configuration

When configuring a sandbox, first fill in the connection information and runtime parameters required by the selected Provider, then use Test connection to verify availability. After the test succeeds, click Save.

Local Runtime Configuration

Local configuration configures the local code execution environment. The system uses the following configuration when executing code tasks such as Python and Node.js.

Go to Local Configuration.
Configure each parameter according to the actual runtime environment.
Click Test connection to test whether the configuration is correct.
After the test succeeds, click Save.

Parameter	Description	Recommendation
`Working Directory`	Working directory used during code execution, for temporary files generated during runtime.	Keep the default, or configure a local directory with read and write permissions.
`Python Binary`	Python executable name or path.	Usually `python3`. If using a virtual environment, enter the full Python path.
`Node.js Binary`	Node.js executable name or path.	Usually `node`. If installed elsewhere, enter the full path.
`Max Artifact Size (bytes)`	Maximum allowed size for a single generated file.	Configure according to business needs. The default usually satisfies common use.
`Max Artifacts`	Maximum number of files allowed in one run.	Keep the default to avoid generating too many temporary files.
`Max Memory (MB)`	Maximum memory available to a single code run.	Configure according to server resources. Increase it when resources are sufficient.
`Max Output (bytes)`	Maximum length of console output.	Keep the default to avoid oversized output.
`Timeout (seconds)`	Maximum runtime for a single code execution.	Set according to the business scenario. The task is terminated automatically after timeout.

If Python or Node.js is not installed, or the executable path is wrong, the connection test fails.

Self-Managed Configuration

Self-Managed configuration connects to a deployed SandboxExecutorManager service for remote sandbox execution. If the code execution service is deployed on an independent server or in a container, complete this configuration.

Go to Self-Managed Configuration.
Configure the code execution service connection information.
Click Test connection to test whether the connection is normal.
After the test succeeds, click Save.

Parameter	Description	Recommendation
`Executor Manager Endpoint`	Access address of the `SandboxExecutorManager` service.	Enter the HTTP address of the code execution service, such as `http://sandbox-executor-manager:9385` or `http://<SERVER_IP>:9385`. Make sure RAGFlow can access this address.
`Request Timeout (seconds)`	Timeout for requests to the code execution service.	Configure according to the network environment and code execution duration. The default 30 seconds is sufficient for most cases; increase it for large tasks.

Executor Manager Endpoint must be the address of a deployed and normally running SandboxExecutorManager service.

Deployment Defaults displays the current default deployment parameters of SandboxExecutorManager.

SSH Configuration

SSH configuration connects to a remote Linux host and executes Python, Node.js, and other code tasks on the remote server. After configuration, the system logs in to the specified server through SSH and executes code in the remote working directory.

Go to System management > Model service > SSH Configuration.
Fill in the remote server connection information.
Select the authentication method: password authentication or private-key authentication.
Configure the remote code runtime environment.
Click Test connection to test whether the connection is normal.
After the test succeeds, click Save.

SSH Connection Configuration

Parameter	Description	Recommendation
`SSH Host`	Remote server IP address or host name.	For example, `192.168.1.10` or `server.example.com`.
`SSH Username`	User name used to log in to the remote server.	Enter a user with code execution permissions, such as `root`, `ubuntu`, or `ragflow`.
`SSH Port`	Port on which the SSH service listens.	The default is `22`. If the server uses another SSH port, enter the actual port.

Authentication

The system supports Password and PrivateKey authentication.

Authentication method	Description	Recommendation
`Password`	Uses the SSH user password for authentication.	Fill in `SSH Password`.
`PrivateKey`	Uses an SSH private key for authentication.	Fill in the SSH private key content. If the private key has a password, also fill in the corresponding `Passphrase`. Private-key authentication is recommended in production.

Execution

Parameter	Description	Recommendation
`Remote Workspace Root`	Working directory on the remote server for temporary files generated during code runs.	Configure a directory with read and write permissions, such as `/tmp` or `/home/ragflow/workspace`.
`Python Binary`	Python executable name or full path.	Usually `python3`. If using a virtual environment, enter the full Python path.
`Node.js Binary`	Node.js executable name or full path.	Usually `node`. If installed elsewhere, enter the full path.
`Max Artifact Bytes`	Maximum allowed size for a single generated file.	Keep the default or adjust according to business needs.
`Max Artifacts`	Maximum number of files allowed in one run.	Keep the default configuration.
`Max Output Bytes`	Maximum size of console output.	Keep the default. Output exceeding the limit is truncated.
`Timeout (seconds)`	Maximum runtime for a single code execution.	The default is 30 seconds. Increase it when execution takes longer.

Make sure the remote server has SSH enabled and allows the current user to log in. The configured user must have read and write permissions on the remote working directory and be able to execute Python, Node.js, and other runtime environments. When using private-key authentication, make sure the private key matches the server configuration.

Alibaba Cloud CodeInterpreter Configuration

Alibaba Cloud CodeInterpreter configuration connects to Alibaba Cloud CodeInterpreter. The system executes code tasks through this service.

Go to AliyunCodeInterpreter Configuration.
Fill in the connection information for Alibaba Cloud CodeInterpreter.
Click Test connection to test whether the connection is normal.
After the test succeeds, click Save.

Parameter	Description	Recommendation
`AccessKeyID`	Alibaba Cloud account `AccessKeyID` for authentication.	Enter an `AccessKeyID` with access to the CodeInterpreter service.
`AccessKeySecret`	Secret corresponding to `AccessKeyID`.	Enter the corresponding `AccessKeySecret` and keep it secure to avoid leakage.
`AccountID`	Alibaba Cloud account ID.	Enter the current Alibaba Cloud account ID.
`Region`	Region where the CodeInterpreter service is located.	Enter the actual deployment region, such as `cn-hangzhou`.
`TemplateName`	Template name used by CodeInterpreter.	Enter the created template name, such as `my-interpreter`.
`ExecutionTimeout (seconds)`	Maximum runtime allowed for a single code execution.	The default is 30 seconds. Adjust according to business needs.

E2B Configuration

E2B configuration connects to the E2B Cloud code execution service. After configuration, the system executes code tasks through the E2B cloud sandbox.

Go to E2B.
Fill in the E2B service connection information.
Click Test connection to test whether the connection is normal.
After the test succeeds, click Save.

Parameter	Description	Recommendation
`API Key`	API key provided by E2B Cloud for authentication.	Log in to the E2B platform, create the corresponding API key, and enter it.
`Region`	Region where the E2B service is located.	Enter the actual region, such as `us`.
`Request Timeout (seconds)`	Timeout for requests to the E2B service.	The default is 30 seconds. Increase it if the network is slow or execution takes longer.
